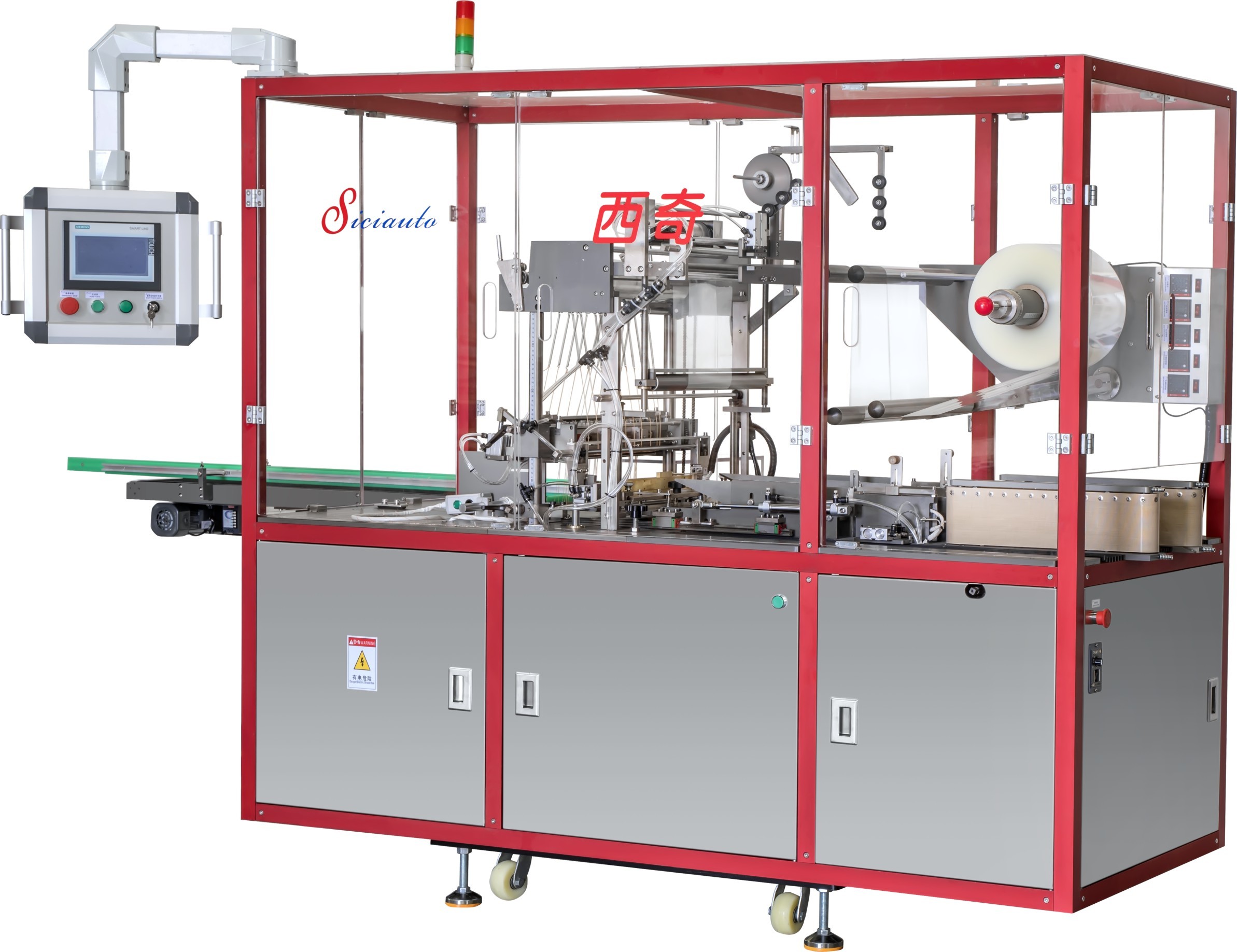

Automatic Transparent Film Perfume Box Overwrapping Machine 20-55pcs/min
Product Introduction of Overwrapping Machine
It has a wide range of applications, and is widely used in the three-dimensional automatic wrapping of a single piece of transparent film for various box-shaped items in the industries of stationery, health care products, food, medicine, and cosmetics. At this stage, there are many highly automated packaging machinery in the packaging industry, but they can be summarized into two categories. One is a three-dimensional overwrapping machine, and the other is a shrink wrapping machine.
Technical Parameter
| Model | XQ-SW350 |
| Packing Size | L50-300mm, W35-200mm, H20-100mm |
| Production Capacity | 20-55 packs / min |
| Total Power | 4kw |
| Working Voltage | 220V |
| Air Consumption | 5-8L/min |
| Air Compressure | 0.4-0.8Mpa |
| Machine Weight | 750kg |
| Machine Dimensions | 2200 (mm) × 950 (mm) × 1800 (mm) |
| Packaged Wooden Case Dimesnion | 2350 (mm) ×1250 (mm) × 2250 (mm) |
Machine Principle
Automatic cellophane overwrapping machine is suitable for wide packing sizes range, to overwrap single or bundle products with BOPP film. It is wildly used in cosmetics, medicine, healthcare, perfume food, soap etc.
Overwrapping Machine Features
Model:XQ-SW350 Transparent film perfume box overwrapping machine
- Automatic machine for single or bundle boxes wrapping.
- Mechanical driven ensures machine stable running, pneumatic drive auxiliary.
- Servo motor control film feeding, PLC control with soft-touch display.
- Stainless steel 304 machine body and organic glass cover.
- GMP standard alumina working plate, flatting and smoothing.
- Flexible size ranges and quick change over mould.
- Tear tape, ink printer, box turning over and stacking are optional.
Easy to change the moulds for different sizes! (within 15 miniutes)
