Chocolate Automatic Cellophane Wrapping Machine 220v Overwrapping

Product Categories
Wuxi Sici Auto Co., Ltd.
Contact Now

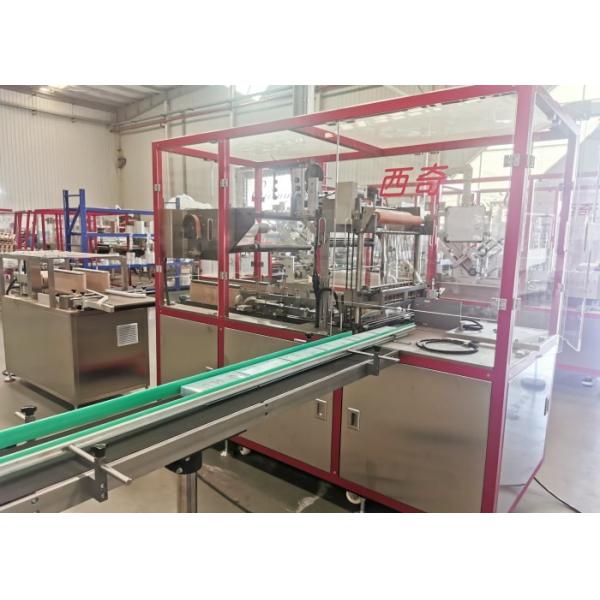

Chocolate Automatic Cellophane Wrapping Machine 220v Overwrapping

  • 1
  • 2

Brand Name : SICI AUTO

Model Number : XQ-SW350

Certification : CE

Place of Origin : Wuxi

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 30 set/ month

Delivery Time : 30 work days

Packaging Details : Wooden Case

Name : Chocolate Automatic Overwrapping Machine

Wrapping mode : bundle wrap

Speed : 20-30pcs/min

Available box dimension : L50-300mm, W35-200mm, H20-100mm

Sealing type : Flat Sealing

Film feeding mode : servo feeding/cam feeding

Power : 4kw

Voltage : 220v

Optional : ironing machine

Application : tea, gift, toys

Contact Now

Chocolate Automatic Overwrapping Machine with Tear Tape for Food



Product Introduction of Overwrapping Machine



XQ-SW350 automatic cellophane wrapping machine is the integrated product of mechanics and electrics. The main working theories of this machine finish the operation of feeding film, folding, forming and heat sealing etc. of procedures to implement packaging stuff when transferring the packaging stuff by using conveyor, series of working procedures to implement packaging stuff.



Technical Parameter



Model XQ-SW350
Packing Size L50-300mm, W35-200mm, H20-100mm
Production Capacity 20-55 packs / min
Total Power 4kw
Working Voltage 220V
Air Consumption 5-8L/min
Air Compressure 0.4-0.8Mpa
Machine Weight 750kg
Machine Dimensions 2200 (mm) × 950 (mm) × 1800 (mm)
Packaged Wooden Case Dimesnion 2350 (mm) ×1250 (mm) × 2250 (mm)



Machine Principle

Chocolate Automatic Cellophane Wrapping Machine 220v Overwrapping







Overwrapping Machine Features



Model:XQ-SW350 Chocolate Automatic Overwrapping Machine with Tear Tape for Food
- Automatic machine for single or bundle boxes wrapping.

- Mechanical driven ensures machine stable running, pneumatic drive auxiliary.

- Servo motor control film feeding, PLC control with soft-touch display.

- Stainless steel 304 machine body and organic glass cover.

- Easy to change mould.



Chocolate Automatic Cellophane Wrapping Machine 220v OverwrappingChocolate Automatic Cellophane Wrapping Machine 220v Overwrapping





Samples

Chocolate Automatic Cellophane Wrapping Machine 220v Overwrapping
